1. Introduction
Plastic pollution, particularly from lost fishing gear composed of high-density polyethylene (HDPE) and polypropylene (PP), represents a significant environmental challenge. This research investigates a promising solution: recycling PP from discarded fishing nets and ropes, reinforcing it with glass fibers (GF), and processing it into filaments suitable for 3D printing (Fused Filament Fabrication). The study aims to evaluate whether this recycled composite (rPP-GF) can match or exceed the performance of its virgin counterpart (vPP-GF), thereby offering a pathway to reduce ocean plastic waste while creating a valuable engineering material.
Key Statistics
75-86% of plastic in the North Pacific Garbage Patch originates from lost fishing gear.
100,000 tons of plastic have accumulated in oceans since 1950.
~1/3 of ocean plastic is HDPE and PP.
2. Materials and Methods
The study employed a comparative analysis between two materials: virgin glass fiber reinforced polypropylene (vPP-GF) and a composite made from recycled PP (from fishing gear) reinforced with virgin glass fibers (rPP-GF).
2.1. Material Composition
vPP-GF: Virgin polypropylene matrix with virgin glass fiber reinforcement.
rPP-GF: Matrix composed of recycled polypropylene sourced from fishing nets/ropes, reinforced with virgin glass fibers. Subsequent analysis suggested potential, unreported contamination with HDPE.
2.2. Testing Procedures
Three primary characterization methods were used:
Differential Scanning Calorimetry (DSC): To analyze thermal properties (melting point $T_m$, crystallization point $T_c$, crystallinity).
Tensile Testing: To determine mechanical strength (tensile stress, tensile strain).
Charpy Impact Testing: To evaluate toughness and impact resistance.
3. Results and Discussion
3.1. Thermal Analysis (DSC)
The rPP-GF composite demonstrated a higher melting point ($T_m$) and higher crystallization point ($T_c$) compared to vPP-GF. This indicates a likely higher degree of crystallinity in the recycled material, which can be attributed to potential nucleation effects from impurities or the suspected HDPE contamination. Higher crystallinity typically correlates with increased stiffness and strength but reduced ductility.
3.2. Tensile Test Results
The tensile tests revealed a compelling trade-off:
rPP-GF: Exhibited a higher maximum tensile stress (ultimate strength).
vPP-GF: Exhibited a higher maximum tensile strain (elongation at break), indicating greater ductility.
This suggests that the recycled composite is stronger but more brittle, while the virgin material is tougher and can deform more before failure. This aligns with the thermal analysis suggesting higher crystallinity in rPP-GF.
3.3. Charpy Impact Test Results
The Charpy impact test data was deemed difficult to interpret conclusively. The study identified the potential presence of unreported HDPE within the rPP-GF sample as a significant confounding factor. HDPE and PP have different fracture mechanics and energy absorption characteristics. This contamination likely skewed the impact resistance results, making a direct, fair comparison between the two materials unreliable for this specific property.
Key Insights
Recycled PP-GF (rPP-GF) can match or exceed the tensile strength of virgin PP-GF (vPP-GF).
The recycled material tends to be stiffer and stronger but less ductile.
Material purity and accurate reporting from suppliers are critical for reliable comparative studies.
The core concept of recycling fishing gear PP into a performant 3D printing filament is technically viable.
4. Technical Details and Analysis
4.1. Mathematical Models
The mechanical behavior of fiber-reinforced composites can be approximated using the Rule of Mixtures. For tensile modulus in the fiber direction:
$E_c = V_f E_f + V_m E_m$
Where:
$E_c$ = Composite modulus
$V_f$ = Volume fraction of fiber
$E_f$ = Modulus of fiber
$V_m$ = Volume fraction of matrix ($V_m = 1 - V_f$)
$E_m$ = Modulus of matrix
The deviation in rPP-GF properties suggests $E_m$ (recycled PP matrix) may differ from the virgin matrix due to degradation, contamination (e.g., HDPE), or altered crystallinity, as shown by $X_c$ calculation from DSC: $X_c = \frac{\Delta H_m}{\Delta H_m^0} \times 100\%$, where $\Delta H_m$ is the measured melting enthalpy and $\Delta H_m^0$ is the enthalpy for 100% crystalline PP.
4.2. Analysis Framework Example
Case: Evaluating Supplier Material Data Integrity
Problem: Discrepancy found between reported composition (100% recycled PP) and observed thermal behavior suggesting HDPE contamination.
Framework Application:
Hypothesis Testing: Null Hypothesis ($H_0$): The rPP-GF sample contains only PP. Alternative Hypothesis ($H_1$): The sample contains PP and HDPE.
Data Collection: Obtain DSC thermograms for pure PP, pure HDPE, and the unknown rPP-GF sample.
Pattern Recognition: Analyze the rPP-GF thermogram for multiple distinct melting peaks or a broadened peak spanning both temperature ranges.
Conclusion: If multiple/ broad peaks are present, reject $H_0$. The finding necessitates supplier verification and adjusts downstream property predictions (e.g., impact strength).
This systematic approach, common in materials informatics, highlights the need for robust characterization to validate recycled material streams.
5. Critical Analysis & Industry Perspective
Core Insight: This paper isn't just about recycling; it's a stark revelation that waste-derived materials can punch above their weight. The finding that rPP-GF often outperforms its virgin counterpart in key strength metrics turns the traditional "recycled equals inferior" narrative on its head. However, the real story is the unreported HDPE contamination, which exposes a critical vulnerability in the emerging circular economy supply chain: a lack of material traceability and purity standards.
Logical Flow: The study's logic is sound—source waste (fishing gear), process it (into filament), and test it against the benchmark. The methods (DSC, tensile, Charpy) are industry-standard. The flaw in the flow is an uncontrolled variable: the unknown material composition. This mirrors challenges in other domains using complex data, like the training of Generative Adversarial Networks (GANs), where unexpected noise or bias in the training data (e.g., in CycleGAN for image translation) can lead to unpredictable and flawed outputs [1]. Garbage in, garbage out applies to both AI models and recycled composites.
Strengths & Flaws: Strengths: The research tackles a high-impact, real-world problem. The comparative design is excellent. Identifying the contamination issue is, ironically, a strength—it highlights a major industry pain point.
Flaws: The contamination undermines the Charpy conclusions. The study would be strengthened by spectroscopic analysis (FTIR) to definitively confirm HDPE presence, as recommended by agencies like the National Institute of Standards and Technology (NIST) for polymer characterization [2]. The "why" behind rPP-GF's higher crystallinity remains speculative.
Actionable Insights:
For Material Suppliers: Implement and advertise rigorous batch-level characterization (DSC, FTIR). Transparency is a premium feature. The Ellen MacArthur Foundation's material circularity indicators could be a framework to adopt [3].
For Manufacturers (Automotive, Consumer Goods): Don't dismiss recycled composites. This data suggests they are viable for stiffness-critical, non-impact components. Start qualification programs now.
For Researchers: Future work must treat "recycled" as a variable, not a constant. Explore sorting technologies (like AI-powered NIR spectroscopy) to ensure feedstock purity. Investigate compatibilizers to manage blends if pure streams are economically unfeasible.
The takeaway is potent: The technology works, but the business process and quality control around it are currently the weakest links. This is the next frontier.
6. Future Applications and Directions
Advanced Sorting & Purification: Integration of AI and machine vision with sorting systems (e.g., based on hyperspectral imaging) to create cleaner recycled PP streams, minimizing cross-contamination.
Multi-Material & Functional Filaments: Exploring the intentional creation of PP/HDPE blends with optimized ratios for specific properties, or adding other functional fillers (e.g., flame retardants, conductive carbon black) for specialized 3D printing applications.
Large-Scale Additive Manufacturing (LSAM): Using recycled PP-GF pellets or granules in LSAM systems for constructing large, durable, and corrosion-resistant structures like marine fixtures, temporary shelters, or custom industrial tooling, directly aligning with circular economy goals.
Digital Inventory & Blockchain: Developing digital passports for recycled material batches, tracking origin, processing history, and property data on a blockchain to ensure quality and build trust for high-value applications.
Bio-based & Degradable Composites: Research into combining recycled PP with bio-derived or biodegradable fibers/ polymers to create partially bio-based composites with engineered end-of-life scenarios.
7. References
Zhu, J., Park, T., Isola, P., & Efros, A. A. (2017). Unpaired Image-to-Image Translation using Cycle-Consistent Adversarial Networks. Proceedings of the IEEE International Conference on Computer Vision (ICCV). (Relevant for discussion on data purity and model training).
National Institute of Standards and Technology (NIST). (n.d.). Polymer Characterization. Retrieved from https://www.nist.gov/programs-projects/polymer-characterization. (Authoritative source on material testing standards).
Ellen MacArthur Foundation. (2023). Material Circularity Indicator (MCI). Retrieved from https://ellenmacarthurfoundation.org/material-circularity-indicator. (Framework for circular economy metrics).
Lebreton, L., et al. (2018). Evidence that the Great Pacific Garbage Patch is rapidly accumulating plastic. Scientific Reports, 8(1), 4666. (Source for fishing gear statistics).

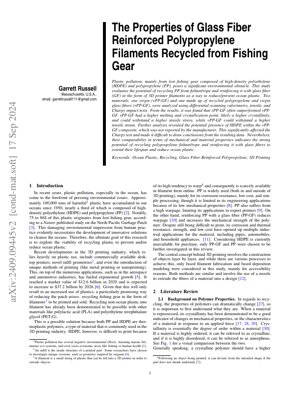

Russell, G. (2023). The Properties of Glass Fiber Reinforced Polypropylene Filaments Recycled from Fishing Gear. [Source PDF].
