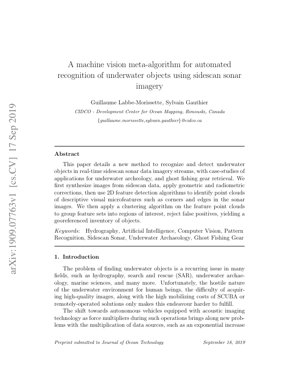

A Machine Vision Meta-Algorithm for Automated Recognition of Underwater Objects Using Sidescan Sonar Imagery

1. Introduction

The paper addresses the critical challenge of locating underwater objects in fields like hydrography, search and rescue (SAR), underwater archaeology, and marine science. The hostile environment, difficulty in acquiring high-quality imagery, and high costs of manned or ROV-based solutions create significant operational hurdles. The shift towards Autonomous Underwater Vehicles (AUVs) equipped with acoustic sensors like sidescan sonar generates vast data streams, creating a bottleneck in post-processing. This paper proposes a novel, real-time meta-algorithm to automate the detection and georeferencing of objects from sidescan sonar imagery, aiming to cut costs, reduce delays, and enhance situational awareness.

2. Previous Work & Context

The authors position their work against traditional feature descriptor methods (SIFT, SURF, BRIEF, ORB) and modern Convolutional Neural Networks (CNNs like AlexNet, VGG, GoogLeNet). They correctly identify a key limitation: these methods require a priori knowledge of the target objects and extensive training datasets. This is a major impediment in underwater domains where target objects are diverse (e.g., countless types of ship debris or fishing gear) and labeled data is scarce or expensive to obtain. Their algorithm is designed as a general-purpose detector that bypasses the need for specific object templates or large training sets.

3. Methodology: The 3-Stage Meta-Algorithm

The core innovation is a streamlined, three-phase pipeline transforming raw sensor data into actionable object information.

3.1 Stage 1: Image Synthesis & Correction

Raw XTF format sidescan sonar data (streamed or from files) is processed to synthesize 2D images. Geometric (e.g., slant-range correction) and radiometric corrections (e.g., time-varying gain compensation) are applied to produce images suitable for automated visual analysis, mitigating sonar-specific artifacts.

3.2 Stage 2: Feature Point Cloud Generation

Standard 2D feature detection algorithms (implied, e.g., corner detectors like Harris or FAST, edge detectors) are applied to the corrected image. This generates a "point cloud" of visual micro-features (corners, edges). The underlying assumption, supported by literature (Viola & Jones, 2004), is that man-made or distinct natural objects will manifest as dense clusters of these features against a noisier, sparser background.

3.3 Stage 3: Clustering & Object Cataloging

The detection problem is reframed as a clustering and noise-rejection task. A clustering algorithm (e.g., DBSCAN or mean-shift is suggested) is applied to the feature point cloud to identify regions of high feature density. The centroid of each cluster is computed, providing a well-defined, georeferenced Region of Interest (ROI). The output is a real-time catalog of geolocated objects.

4. Case Studies & Applications

The paper highlights two compelling use cases that benefit from its generalist approach:

• Underwater Archaeology: Detection of non-standardized, often deteriorated ship debris and artifacts where creating a comprehensive training set for a CNN is impractical.
• Ocean Waste Management (Ghost Gear): Identification of lost or abandoned fishing gear (nets, traps, lines) which come in innumerable shapes and sizes, making template-based methods ineffective.

5. Technical Deep Dive

The algorithm's effectiveness hinges on the clustering phase. A suitable algorithm like DBSCAN (Density-Based Spatial Clustering of Applications with Noise) is ideal as it can find arbitrarily shaped clusters and label sparse points as noise. The core operation can be conceptualized as finding clusters $C$ in a feature set $F = \{f_1, f_2, ..., f_n\}$ where each feature $f_i$ has image coordinates $(x_i, y_i)$. A cluster $C_k$ is defined such that for a distance $\epsilon$ and minimum points $MinPts$, the density in its neighborhood exceeds a threshold, separating it from background noise. The object location is then given by the centroid: $\text{Centroid}(C_k) = \left( \frac{1}{|C_k|} \sum_{f_i \in C_k} x_i, \frac{1}{|C_k|} \sum_{f_i \in C_k} y_i \right)$.

6. Results & Performance

While the provided PDF excerpt does not include quantitative results, the described workflow implies key performance metrics:

• Detection Rate: Ability to identify objects of interest (true positives).
• False Positive Rate: Incorrect labeling of seabed texture or noise as objects. The clustering stage is critical for noise rejection.
• Geolocation Accuracy: Precision of the computed centroid relative to the object's true position, dependent on sonar navigation data quality.
• Processing Latency: The system's ability to keep pace with real-time sonar data ingestion, a claimed advantage over post-processing.

Visualization: The output can be visualized as a sidescan sonar image overlay: the raw sonar waterfall display, with bounding boxes or markers drawn around detected clusters, and a separate panel listing the georeferenced catalog (latitude, longitude, confidence score).

7. Analytical Framework & Example

Framework for Evaluation: To assess such a system, one would construct a test dataset with known ground truth objects (e.g., simulated or deployed targets on a known seabed). The analysis would follow this flow:

1. Input: Raw XTF sidescan data file containing a mix of objects (e.g., shipwreck piece, ceramic amphora, modern debris) and complex background (sand, rock, vegetation).
2. Process: Run the 3-stage algorithm. Tune Stage 2 feature detector sensitivity and Stage 3 clustering parameters ($\epsilon$, $MinPts$) to optimize the trade-off between detection and false alarms.
3. Output Analysis: Compare the algorithm's catalog against the ground truth. Calculate Precision $P = TP/(TP+FP)$, Recall $R = TP/(TP+FN)$, and F1-score. Analyze missed objects (false negatives)—were they low-contrast or lacked sharp features? Analyze false positives—did they arise from dense biological colonies or rocky outcrops?
4. Insight: This framework reveals the algorithm's fundamental performance boundary: it excels at finding feature-dense anomalies but may struggle with smooth, large objects or be fooled by certain natural textures.

8. Future Directions & Applications

The proposed meta-algorithm lays a foundation for several advanced developments:

• Hybrid AI Systems: The algorithm's ROI output could feed a secondary, specialized CNN classifier. The meta-algorithm acts as a "coarse filter," finding candidate regions, while a compact CNN performs fine-grained classification (e.g., "net vs. tire vs. rock"), leveraging work from domains like few-shot learning.
• Multi-Modal Fusion: Integrating data from other sensors on the AUV, such as bathymetric sonar (multibeam) or sub-bottom profilers, to create a 3D feature cloud, improving discrimination between objects and seabed.
• Adaptive Clustering: Implementing online clustering algorithms that adapt parameters based on local seabed type (e.g., more sensitive in sandy areas, more conservative in rocky areas), informed by prior maps or simultaneous seabed classification.
• Broader Applications: Pipeline and cable inspection (detecting exposures or damage), mine countermeasures (as a rapid initial sweep), and marine habitat monitoring (detecting anomalous structures).

9. References

1. Lowe, D. G. (1999). Object recognition from local scale-invariant features. Proceedings of the Seventh IEEE International Conference on Computer Vision.
2. Bay, H., Ess, A., Tuytelaars, T., & Van Gool, L. (2008). Speeded-Up Robust Features (SURF). Computer Vision and Image Understanding.
3. Viola, P., & Jones, M. (2004). Robust Real-Time Face Detection. International Journal of Computer Vision.
4. Krizhevsky, A., Sutskever, I., & Hinton, G. E. (2012). ImageNet classification with deep convolutional neural networks. Advances in Neural Information Processing Systems.
5. Ronneberger, O., Fischer, P., & Brox, T. (2015). U-Net: Convolutional Networks for Biomedical Image Segmentation. Medical Image Computing and Computer-Assisted Intervention (MICCAI). (For analogy to encoder-decoder structures in sonar).
6. NOAA Ocean Exploration. (2023). Advancing Technologies for Ocean Exploration. https://oceanexplorer.noaa.gov/technology/technology.html
