Harvesting Fisheries Management Strategies With Modified Effort Function - Analysis

Table of Contents

1. Introduction & Overview

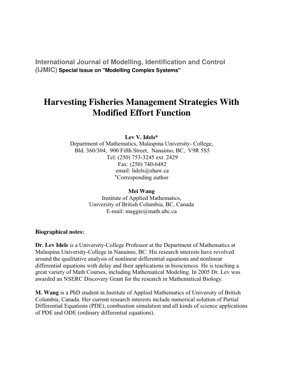

This paper, "Harvesting Fisheries Management Strategies With Modified Effort Function," addresses a critical gap in traditional bioeconomic fishery models. The core innovation lies in challenging the conventional assumption that fishing effort ($E$) is an exogenous, time-dependent variable independent of fish stock abundance. The authors argue that in reality, effort is dynamically influenced by population density—higher fish abundance can reduce the effort required per unit catch, and market feedback mechanisms (price signals) further modulate effort. By proposing a modified effort function $E(N, dN/dt)$ that incorporates this inverse relationship, the study develops a more realistic family of ordinary differential equation (ODE) models to analyze and compare the long-term sustainability and equilibrium outcomes of various harvesting strategies.

2. Core Model & Methodology

2.1 The Schaefer Model & Traditional Effort

The analysis builds upon the canonical Schaefer (logistic growth) model: $$ \frac{dN}{dt} = rN \left(1 - \frac{N}{K}\right) - Y(t) $$ where $N$ is fish biomass, $r$ is intrinsic growth rate, $K$ is carrying capacity. The harvest $Y(t)$ is traditionally defined as: $$ Y(t) = q \, N(t) \, E(t) $$ where $q$ is catchability and $E(t)$ is an externally defined fishing effort.

2.2 The Modified Effort Function

The paper's pivotal contribution is redefining effort as a function responsive to population dynamics: $$ E(t) = \alpha(t) - \beta(t) \frac{1}{N}\frac{dN}{dt} $$ Here, $\alpha(t) \geq 0$ and $\beta(t) \geq 0$ are time-varying parameters. The term $-\beta (1/N)(dN/dt)$ captures the "inverse effect": if the population is growing ($dN/dt > 0$), perceived effort/cost decreases, potentially increasing actual effort. This introduces a feedback loop absent in classic models.

2.3 Derivation of the New Governing Equation

Substituting the modified $E(t)$ and $Y(t)$ into the Schaefer model yields the new governing differential equation: $$ \frac{dN}{dt} = rN \left(1 - \frac{N}{K}\right) - qN \left[ \alpha(t) - \beta(t) \frac{1}{N}\frac{dN}{dt} \right] $$ Rearranging terms leads to: $$ \left(1 - q\beta(t)\right) \frac{dN}{dt} = rN \left(1 - \frac{N}{K}\right) - q \alpha(t) N $$ This formulation explicitly shows how the control parameter $\beta$ influences both the transient dynamics and the equilibrium state of the system.

3. Management Strategies Analyzed

The study employs qualitative analysis and numerical simulations to evaluate six management strategies under the new model framework.

3.1 Proportional Harvesting

Constant effort ($E$ = constant). Serves as the baseline for comparison with traditional results.

3.2 Threshold Harvesting

Harvesting occurs only when population $N$ exceeds a predefined threshold $N_T$. This "on-off" strategy is tested for its ability to prevent collapse.

3.3 Proportional Threshold Harvesting

A hybrid strategy where effort is proportional to the amount by which $N$ exceeds the threshold $N_T$.

3.4 Seasonal & Rotational Harvesting

Time-dependent strategies where $\alpha(t)$ and $\beta(t)$ are periodic functions, modeling closed seasons or area rotations. The paper investigates their efficacy in promoting recovery.

4. Technical Details & Mathematical Framework

The key mathematical insight is that the parameter $\beta$ (magnitude of the stock-dependent feedback) alters the system's fundamental structure. When $\beta = 0$, the model collapses to the traditional form. For $\beta > 0$, the term $(1 - q\beta)$ modifies the effective rate of change. Crucially, the equilibrium population $N^*$ is found by setting $dN/dt = 0$: $$ N^* = K \left(1 - \frac{q \alpha}{r}\right) $$ Interestingly, the equilibrium depends on $\alpha$ but not directly on $\beta$. However, $\beta$ critically affects the stability and the rate of approach to equilibrium, as it scales the derivative term. Stability analysis via linearization around $N^*$ would involve the Jacobian, which now includes terms derived from the $\beta$-dependent feedback.

5. Results & Numerical Simulations

While the provided PDF excerpt does not show specific figures, the text states that numerical simulations were conducted. Based on the description, the expected results and their implications are:

• Equilibrium Shift: Simulations likely demonstrate that for a fixed $\alpha$, different $\beta$ values lead to the same $N^*$ but different convergence paths. High $\beta$ may cause oscillatory dampening or slower recovery from perturbations.
• Strategy Comparison: Threshold-based strategies (3.2, 3.3) probably show higher resilience, maintaining populations above critical levels more effectively than constant effort under the modified model. The feedback mechanism in the modified effort function may amplify the benefits of threshold policies by automatically reducing effort as the population declines toward the threshold.
• Seasonal Efficacy: The analysis of seasonal strategies (3.4) would address the "often debated question" mentioned in the PDF. Results likely indicate that the success of seasonal closures is highly dependent on the coupling parameter $\beta$ and the timing of the closure relative to population growth cycles.

Note: A full results section would include descriptions of graphs plotting population $N(t)$ over time for different strategies and parameter sets, phase portraits, and bifurcation diagrams showing how equilibria and stability change with $\alpha$ and $\beta$.

6. Analytical Framework: Case Example

Scenario: Analyzing a Proportional Threshold Harvesting strategy with the modified effort function.

Setup:

• Let threshold $N_T = 0.4K$.
• Define effort function parameters: $\alpha(t) = \alpha_0 \cdot \max(0, N - N_T)$ and $\beta(t) = \beta_0$ (constant).
• Parameters: $r=0.5$, $K=1000$, $q=0.001$, $\alpha_0=0.8$, $\beta_0=200$.

Analytical Questions:

1. For $N > N_T$, derive the specific ODE.
2. Calculate the non-zero equilibrium $N^*$ for this regime.
3. Determine the condition on $\beta_0$ for the model to remain physically sensible ($1 - q\beta_0 > 0$).

This framework allows for testing how the feedback strength $\beta_0$ influences the system's response near the management threshold.

7. Critical Analysis & Expert Insight

Core Insight: Idels and Wang aren't just tweaking an equation; they're formalizing a fundamental market-biology feedback loop that traditional fishery models glaringly ignore. The core insight is that effort isn't a dial managers turn—it's a dynamic variable shaped by stock visibility and economic perception. This moves the model from a purely biological control system to a rudimentary bio-economic one, akin to incorporating adaptive agent behavior seen in complex systems modeling.

Logical Flow & Contribution: The logic is elegant: 1) Identify flaw (exogenous effort), 2) Propose mechanistic fix (effort depends on stock change), 3) Derive implications (new ODE structure), 4) Test against policy archetypes. Their key technical contribution is showing parameter $\beta$ governs rate but not location of equilibrium—a non-intuitive result that has significant management implications. It suggests that while long-term stock size might be set by average effort ($\alpha$), the system's resilience to shocks and speed of recovery are controlled by this feedback sensitivity ($\beta$). This decoupling is crucial.

Strengths & Flaws: The strength is in bridging a tangible real-world phenomenon (fishers reacting to catch rates) with mathematical ecology. However, the model is still simplistic. It assumes a linear, instantaneous feedback, whereas real-world effort adjustment involves time lags, regulatory constraints, and non-linear economic decisions. Compared to more sophisticated adaptive management frameworks or agent-based models used in fields like computational sustainability, this is a first-order approximation. The model also doesn't explicitly include economic variables like price or cost, which are central to true bioeconomic models (e.g., Gordon-Schaefer model). It hints at them but doesn't formalize the link.

Actionable Insights: For fishery managers, this research underscores that monitoring and influencing the perceived relationship between stock and effort (the $\beta$ parameter) is as important as setting catch limits ($\alpha$). Policies that break the "low stock → high effort" feedback (e.g., territorial use rights, community co-management) could increase $\beta$'s stabilizing effect. The analysis of threshold strategies provides mathematical support for precautionary, biomass-triggered rules like those advocated by the FAO Precautionary Approach. Future empirical work must focus on estimating $\beta$ from real fishery data—a challenging but necessary step to transition this from theoretical elegance to practical tool.

8. Future Applications & Research Directions

• Integration with Modern Computational Tools: Coupling this modified ODE framework with Individual-Based Models (IBMs) or Agent-Based Models (ABMs) for fishers' behavior. This would allow testing how heterogeneous fleet dynamics aggregate to form the macro-level $\beta$ parameter.
• Empirical Calibration: Applying state-space modeling or Bayesian inference techniques to historical catch and effort data from fisheries (e.g., ICES stock assessments) to estimate region- and fishery-specific $\alpha(t)$ and $\beta(t)$ functions.
• Climate Change Integration: Extending the model to include non-stationary parameters where $r$ and $K$ are functions of time due to climate change, and studying how the effort feedback $\beta$ interacts with external environmental forcing.
• Multi-Species & Ecosystem Context: Generalizing the modified effort function to multi-species models (e.g., Lotka-Volterra with harvesting) or Eco-Evolutionary Dynamics, where fishing pressure selects for life-history traits.
• Link to Management Procedures: Formalizing the connection between this model and Harvest Control Rules (HCRs) used in modern Management Strategy Evaluation (MSE), potentially deriving optimal feedback control laws for $\alpha$ and $\beta$.

9. References

1. Clark, C. W. (1990). Mathematical Bioeconomics: The Optimal Management of Renewable Resources. Wiley-Interscience.
2. Hilborn, R., & Walters, C. J. (1992). Quantitative Fisheries Stock Assessment: Choice, Dynamics and Uncertainty. Chapman and Hall.
3. FAO. (2020). The State of World Fisheries and Aquaculture 2020. Sustainability in action. Food and Agriculture Organization of the United Nations.
4. Schaefer, M. B. (1954). Some aspects of the dynamics of populations important to the management of commercial marine fisheries. Bulletin of the Inter-American Tropical Tuna Commission, 1(2), 25-56.
5. Costello, C., Gaines, S. D., & Lynham, J. (2008). Can Catch Shares Prevent Fisheries Collapse? Science, 321(5896), 1678-1681.
6. Gotelli, N. J. (2008). A Primer of Ecology. Sinauer Associates. (For foundational population ecology).
7. ICES. (2022). Advice on fishing opportunities, catch, and effort. Various reports. International Council for the Exploration of the Sea. (Source for empirical data and current management practice).
8. Botsford, L. W., Castilla, J. C., & Peterson, C. H. (1997). The Management of Fisheries and Marine Ecosystems. Science, 277(5325), 509-515.
